TM 5-3895-369-14
4-100. PUMP DRIVE SHAFT REPLACEMENT (CONT).
(2)

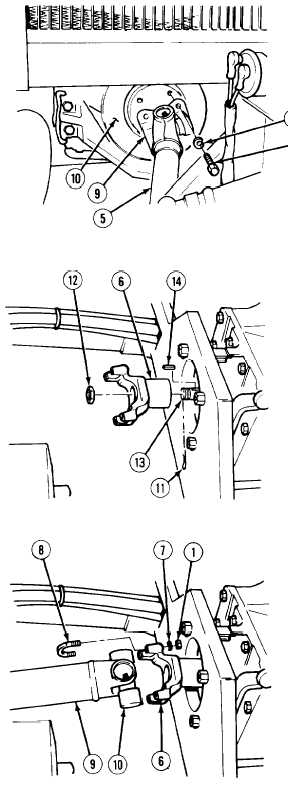

Remove four screws (7), lockwashers (8),
and flange (9) on drive shaft (5) from
damper (10). Discard lockwashers.
(3)
Remove cotter pin (11), nut (12), and
yoke (6) from pump (13). Discard
cotter pin.
(4)
Remove key (14) from pump shaft (12).
b. Installation.
(1)
Install key (14) in pump shaft (13).
(2)
Install yoke (12) on keyed pump shaft (13)
with nut (11) and cotter pin (10).
(3)
Install universal joint (9), on drive shaft (8),
on yoke (12) with two u-bolts (7), four
lockwashers (6), and nuts (5).
4-364
