TM 5-3895-369-14
4-100. PUMP DRIVE SHAFT REPLACEMENT.
This task covers:
a. Removal
b. Installation
INITIAL SETUP
Tools
Shop equipment, automotive maintenance and
repair: organizational maintenance common
no. 1, less power
Wrench, torque
Materials/Parts
Lockwashers (8)
Pin, cotter
Equipment Condition
TM or Para
Para 2-13
Para 2-2
Condition Description
Parking brake set.
Clutch in neutral.
a.
Removal.
(1)

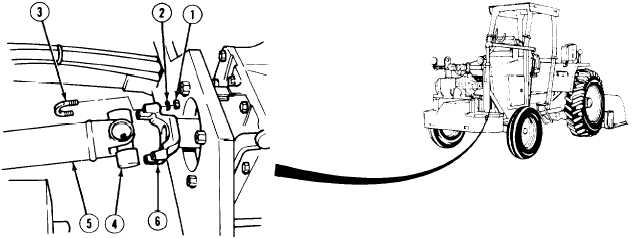

Remove four nuts (1) lockwashers (2), two u-bolts (3), and universal joint (4), on drive shaft (5) from
yoke (6). Discard lockwashers.
4-363
