TM 5-3895-369-14
4-99. HYDROSTATIC PUMP CABLE ADJUSTMENT.
This task covers:
Adjustment
INITIAL SETUP
Tools
Tool kit, general mechanic’s: equipment
maintenance and repair
Equipment Condition
TM or Para
Para 2-2
Para 4-97
Condition Description
Pump control lever in
neutral position.
Hydrostatic pump cover
removed.
Chock wheels.

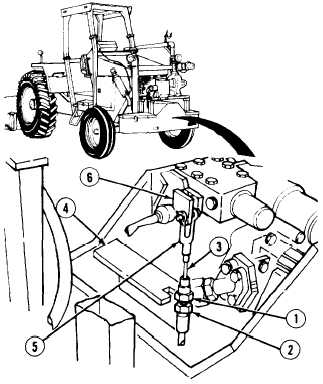

Adjustment.
(1)
Loosen two nuts (1 and 2) and remove
cable (3) from bracket (4).
(2)
Turn clevis (5) until it holds pump lever (6)
in detent position.
(3)
Install cable (3) on bracket (4) and tighten
two nuts (2 and 1).
NOTE
Follow-on Maintenance: Install hydrostatic pump cover (para 4-97).
END OF TASK
