4-64. WATER INLET REPLACEMENT.
This task covers:
a. Removal
INITIAL SETUP
b. Installation
Tools
Tool kit, general mechanics: automotive
Wrench, torque
Materials/Parts
Equipment Condition
TM or Para
Para 4-66
Para 4-90
Condition Description
Coolant system drained.
Negative battery cables
disconnected.
Cloth, lint-free (item 12, appendix E)
Ring, seal

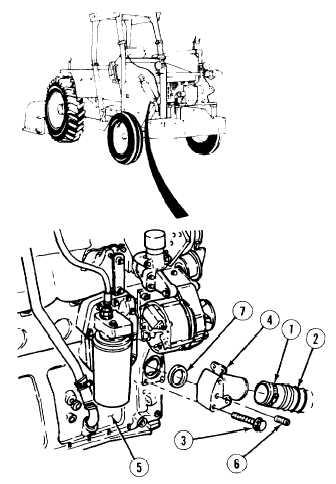

a. Removal.
(1)
Loosen clamp (1) and remove hose (2).
(2)
Remove three screws (3) and water inlet (4)
from engine block (5).
(3) If damaged, remove two pipe plugs (6) from
water inlet (4).
NOTE
Seal ring may stay with water inlet.
(4)
Remove and discard seal ring (7) from
engine block (5).
b. Installation.
(1)
Install seal ring (7) in engine block (5).
(2)
If removed, install two pipe plugs (6) in
water inlet (4).
(3)
Install water inlet (4) with three screws (3).
Tighten screws 32 lb-ft (44 N-m).
(4)
Install hose (2) and tighten clamp (1).
NOTE
Follow-on Maintenance:
Fill coolant system (para 4-66).
Connect negative battery cables (para 4-90).
END OF TASK
