TM 5-3895-369-14
(2)

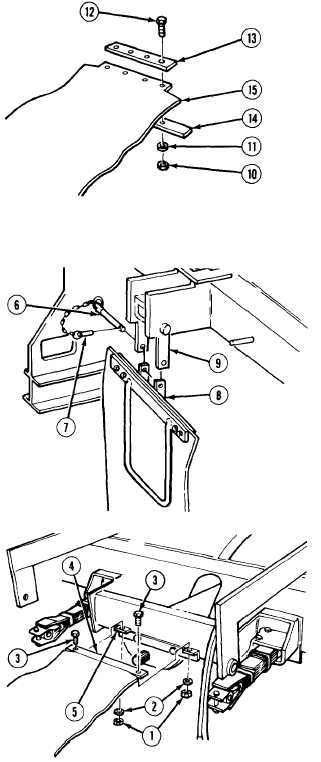

Install retaining plate (13) and backing
plate (14) on flap (15) with four screws (12),
lockwashers (11), and nuts (10).
(3)
Install flap assembly (8) on bracket (9) with
anchor pin (7) and retaining pin (6).
(4)
Install flap assembly (4) on rotor mounting
bracket (5) with two screws (3),
lockwashers (2), and nuts (1).
END OF TASK
4-371
