TM 5-3895-369-14
NOTE
Tag and mark wires before removal.
(3)

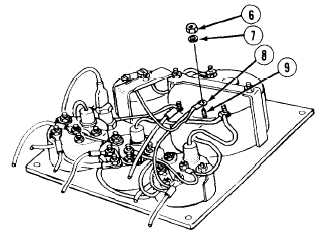

Remove nut (6) and lo&washer (7). Tag,
mark, and remove wire (8) from tachometer
post (9). Discard lockwasher.
(4)
Tag, mark, and disconnect wire (10) from
fuse post (11).
(5)
Tag, mark, and disconnect wire (12) from
fuse post (13).
4-277
