TM 5-3895-369-14
4-73. INSTRUMENT PANEL REPLACEMENT.
This task covers:
a. Removal
INITIAL SETUP
b. Cleaning/Inspection
c. Installation
Tools
Tool kit, general mechanic’s: automotive
MaterialslParts
Cloth, lint-free (item 12, appendix E)
Tags, identification (item 55, appendix E)
Lockwashers (5)
Equipment Condition
TM or Para
Para 4-90
Para 4-128
Para 4-130
Condition Description
Negative battery cables
disconnected.
Dash panel removed.
Additive access cover
removed.
a.
Removal.

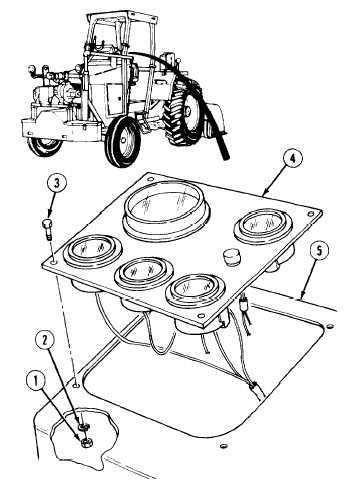

(1)
Remove four nuts (1),
lockwashers
(2), and
screws (3) from instrument panel (4).
Discard
lockwashers
.
(2)
Remove and turn instrument panel (4) over
onto dash (5).
4-276
