TM 5-3895-369-14
4-45. AIR INLET PIPE REPLACEMENT.
This task covers:
a. Removal
b. Installation
INITIAL SETUP
Tools
Tool kit, general mechanic’s: automotive
Wrench, torque
General Safety Instructions
If engine has previously been in operation, use
caution in performing procedure. Engine block
retains extreme heat in operation.
Equipment Condition
TM or Para
Para 2-14
Condition Description
Left and right engine
door opened.
a.
Removal.

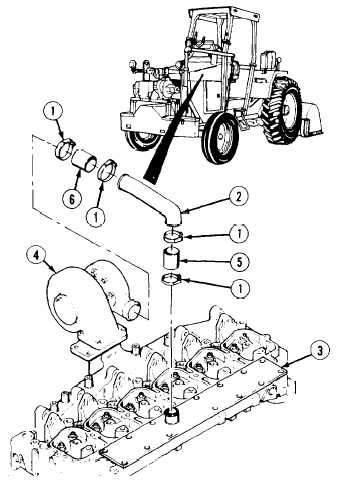

(1)
Loosen four clamps (1) and remove intake
pipe assembly (2) from manifold cover (3)
and turbocharger (4).
(2)
Remove two hoses (5 and 6) from pipe (2).
b. Installation.
(1)
Connect two hoses (6 and 5) on pipe (2).
(2)
Install two clamps (1) on hose (6) and
connect hose to turbocharger (4).
(3)
Install two clamps (1) on hose (5) and
connect hose to manifold cover (3). Tighten
four clamps 72 lb-in (8 N•m).
NOTE
Follow-on maintenance: Close left and
right engine doors (para 2-14).
END OF TASK
4-203
