TM 5-3895-369-14
4-32. ENGINE BREATHER TUBE REPLACEMENT.
This task covers:
a. Removal
b. Installation
INITIAL SETUP
Tools
Tool kit, general mechanics: automotive
Equipment Condition
TM or Para
Para 2-14
Condition Description
Left engine door opened.
a.
b.

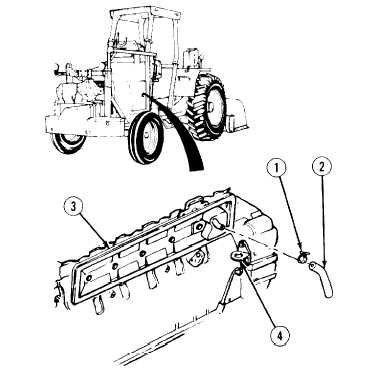

Removal.
(1)
Remove clamp (1) from tube (2).
(2)
Remove tube (2) from tappet cover (3) and
loop clamp (4).
Installation.
(1)
Install tube (2) in loop clamp (4).
(2)
Install tube (2) on tappet cover (3) with
clamp (1).
NOTE
Follow-on maintenance: Close left engine door (para 2-14).
END OF TASK
4-175
