TM 5-3895-369-14

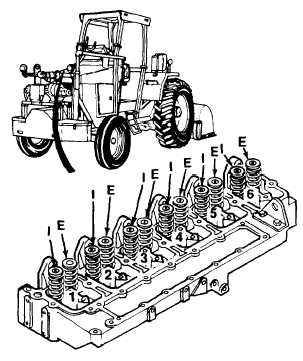

VALVE CLEARANCE
INSPECTION
(1) Disconnect negative battery cable
(para 4-90).
(2) Remove valve covers (pare 4-31).
(3) Check valve clearance, (pare 4-30).
(a) Intake valves clearance must
be 0.010 in. (0.25 mm).
(b) Exhaust valves clearance must
be 0.020 in. (0.51 mm).
(4) Install valve covers (para 4-31).
(5) Connect negative battery cable
(para 4-90).
4-97
