TM 5-3895-369-14
4-89. BATTERY BOX REPLACEMENT/REPAIR (CONT).
(6)
Loosely install two hold-downs (3) with
lookwashers (2) and nuts (1).
(4)
Install edging (7) on box (4).
(5)
Install latch (6) on box (4) with two
screws (5).
e.
Installation.
(1)

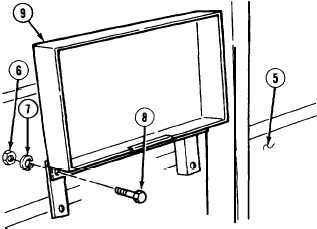

Install battery box lid (9) on frame (5) with
seven screws (8), lockwashers (7), and
nuts (6). Tighten nuts 96 lb-in (10.8 N•m).
(2)

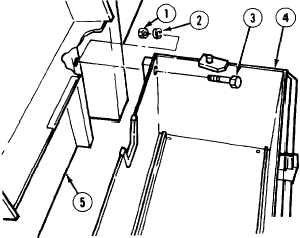

Install battery box (4) on frame (5) with four
screws (3), lockwashers (2) and nuts (1).
Tighten nuts 204 lb-in (23 N•m).
NOTE
Follow-on Maintenance: Install auxiliary
battery (para 4-88).
END OF TASK
4-340
