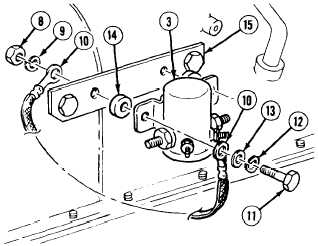

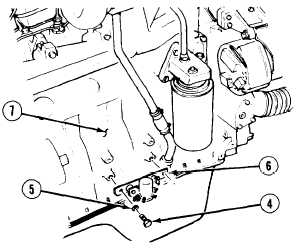

TM 5-3895-369-14 (2) (3) (4) Remove two screws (4), lockwashers (5), and solenoid (3) from engine block (6). Discard lockwashers. Remove two nuts (7), lockwashers (8) and ground strap (9). Discard lockwashers. Remove two screws (10), lockwashers (1l), washers (12) ground strap (9), solenoid (3), and two bushings (13) from bracket (14). Discard lockwashers and bushings. b. Installation. Install two bushings (13) solenoid (3), ground strap (9), two washers (12), lockwashers (1l), and two screws (10). (1) (2) (3) Install ground strap (9), two lockwashers (8), and nuts (7). Install solenoid assembly (3) on engine block (6) with two lockwashers (5) and screws (4). Tighten screws 216 lb-in (24 N•m). 4-319
