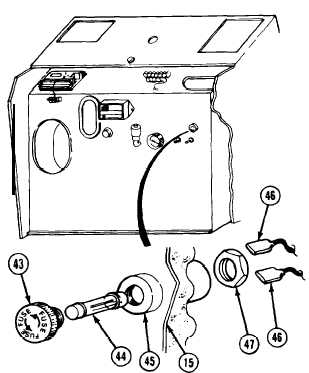

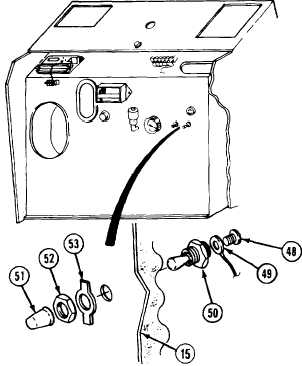

TM 5-3895-369-144-78. FIREWALL INSTRUMENT REPLACEMENT (CONT).(18)(19)(20)Remove fuse cover (43) and fuse (44) fromfuse port (45).Remove two leads (46) at rear of fuseport (45).Remove jamnut (47) and fuse port (45) fromfirewall (15).(21)Remove three screws (48) and leads (49)from switches (50).(22)Remove two rubber boots (51),jamnuts (52), and washers (53) fromswitches (50).(23)Remove switches (50) from firewall (l5).b. Cleaning/Inspection.(1)Check all gauges, leads, and switches forproper connections.(2)Check for damaged parts.(3)Replace all damaged parts.c.Installation.(1)Install switch (50) to firewall (15).(2)Install washers (53), jamnuts (52), and tworubber boots (51) to switches (50).(3)Install three leads (49) with screws (48) toswitches (50).4-310
