TM 5-3695-369-14
4-59. MUFFLER AND EXHAUST PIPES REPLACEMENT (CONT).
(4)

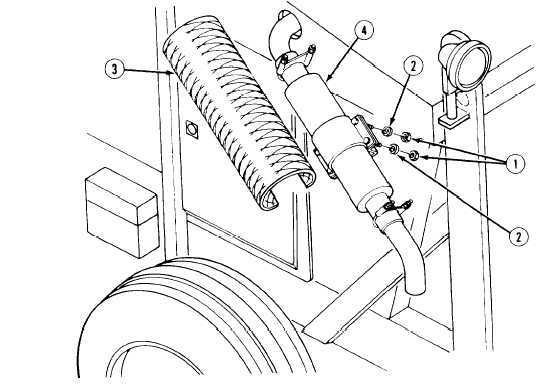

Install exhaust pipe (8). muffler (4) and two
u-bolt assemblies (7) with four lockwashers
(6) and nuts (5).
(5)
Install heat guard (3) on muffler (4) with four lockwashers (2) and nuts (1).
END OF TASK
4-252
