TM 5-3895-369-14
4-37. EXHAUST MANIFOLD REPLACEMENT.
This task covers:
a. Removal
b. Cleaning/Inspection
c. Installation
INITIAL SETUP
Tools
Shop equipment, automotive maintenance and
repair: organizational maintenance common
no. 1, less power
Wrench, Torque
Materials/Parts
Cloth, lint-free (item 12, appendix E)
Compound, anti-seize (item 13, appendix E)
Solvent, drycleaning (item 54, appendix E)
Gaskets, manifold (6)
Equipment Condition
TM or Para
Condition Description
Para 4-44
Turbocharger removed.
General Safety Instructions
If engine has recently been in operation, allow
time for cooling before performing procedure.
NOTE
Valve covers removed for clarity.

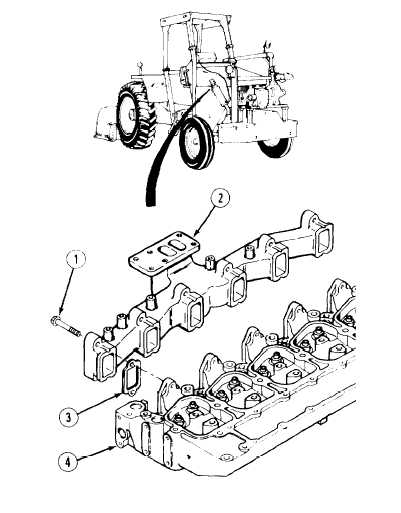

a.
Removal. Remove 12 screws (1), exhaust
manifold (2), and six gaskets (3) from cylinder
head (4). Discard gaskets.
4-185
