TM 5-3895-369-14
4-28. MASTER CYLINDER SERVICE.
This task covers:
a. Level Check
b. Filling
INITIAL SETUP
Tools
Tool kit, general mechanic’s: automotive
Materials/Parts
BFS, brake fluid, silicone (item 21, appendix E)
Equipment Condition
TM or Para
Para 2-13
Para
Condition Description
Parking brake set.
Aft floor deck raised.
Wheels chocked.
a.
Level Check
(1)

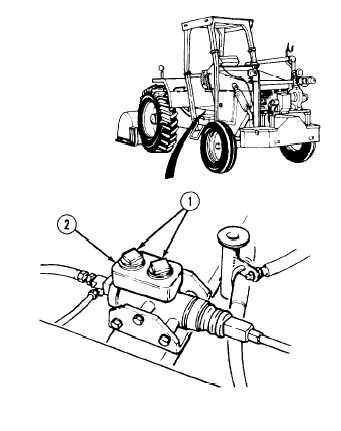

Remove two fill caps (1) from master
cylinder (2).
(2)
Check brake fluid level. Brake fluid level
should be to the bottom threads of fill holes.
b. Filling.
(1)
Fill master cylinder (2) with silicone brake
fluid (item 21 , apendix E) to the bottom
threads of fill holes.
(2)
Install two fill caps (1) on master
cylinder (2). Tighten caps securely.
NOTE
Follow-on Maintenance:
Lower aft floor deck (para 2-64).
Remove wheel chocks.
END OF TASK
4-167
